NOTE:

1. The intelligent remote control only supports infrared remote control, and does not support Bluetooth or RF or 2.4G remote control
2. It does not have a built-in battery and requires constant USB power supply.
3. It needs a WiFi 2.4GHz network that is always connected when it works. Please turn on 2.4GHz WiFi and stay online.
4. The original APP is Smart Life and Tuya Smart, and the third party (Amazon Alexa, Google Home, Yandex Alice) is not necessary.
5. Because the third party (Amazon Alexa/Google Home/Yandex Alice) does not have a corresponding display panel, after linking, they cannot display the same control panel as Smart Life on their APP.
6. The remote control can be controlled by voice on the third-party smart speaker (Amazon Alexa/Google Home/Yandex Alice), But DIY learning control panel does not support it.
7. It cannot reverse synchronize the signal of the original remote control of household appliances.
8. Yandex Alice only supports AC, TV, TV Box and Fan.
9. Bluetooth only works when configuring
10. The temperature and humidity data cannot be displayed on the third party (Amazon Alexa/Google Home/Yandex Alice), cannot be queried by voice, and cannot establish an automatic process on the third-party APP.
11. All temperature and humidity sensors will have certain errors, please note. The error of this sensor is ± 1 ℃ and the error of humidity is ± 5% RH
12. The minimum granularity of historical data (daily chart) is 1 hour, and the minimum granularity of exported data is also 1 hour.
Days of historical data are stored for 7 days.
The value of historical data is the average value, that is, the average value in a minimum granularity time

About using temperature or humidity data as automation conditions
The sensor data uses the principle of Edge Triggered
That is, the action can only be triggered if the condition crosses the set condition
For example, when the automatic setting temperature is greater than 25 ℃, then turn on the air conditioner.
1. When the temperature rises from below 25 ℃ to 25 ℃, the automatic process can trigger to start the air conditioner
2. After the automatic process is set, the temperature is always above 25 ℃, and the air conditioner is not turned on.
3. When the temperature drops to 25 ℃ and rises to above 25 ℃, the automatic process will be activated.

For example, when the automatic setting temperature is less than 20 ℃, turn on the air conditioner
1. When the temperature drops from above 20 ℃ to 20 ℃, the automatic process can trigger to start the air conditioner
2. After the automatic process is set, the temperature is always below 20 ℃, and the air conditioner is not turned on
3. When the temperature rises to 20 ℃ and then drops to above 20 ℃, the automatic process will be activated.

Product Features:

With this Universal IR Remote Control, you may use your smart phone to control home appliances, such as STB(Set-Top-Box), TV Box, TV, Air Conditioner, Fan, DVD, etc. Compatible with most of brands, for details, please refer to the supported brand list in App. Besides, it has LEARNING FUNCTON, allows you to copy the key function of original remote control to App.
Note: Not compatible with the home appliances which use RF or BLUETOOTH remote control.
1. Massive IR Code Database
Support 4000+ brands, 50000+ IR Code on cloud, supported devices library is constantly being updated by the cloud.

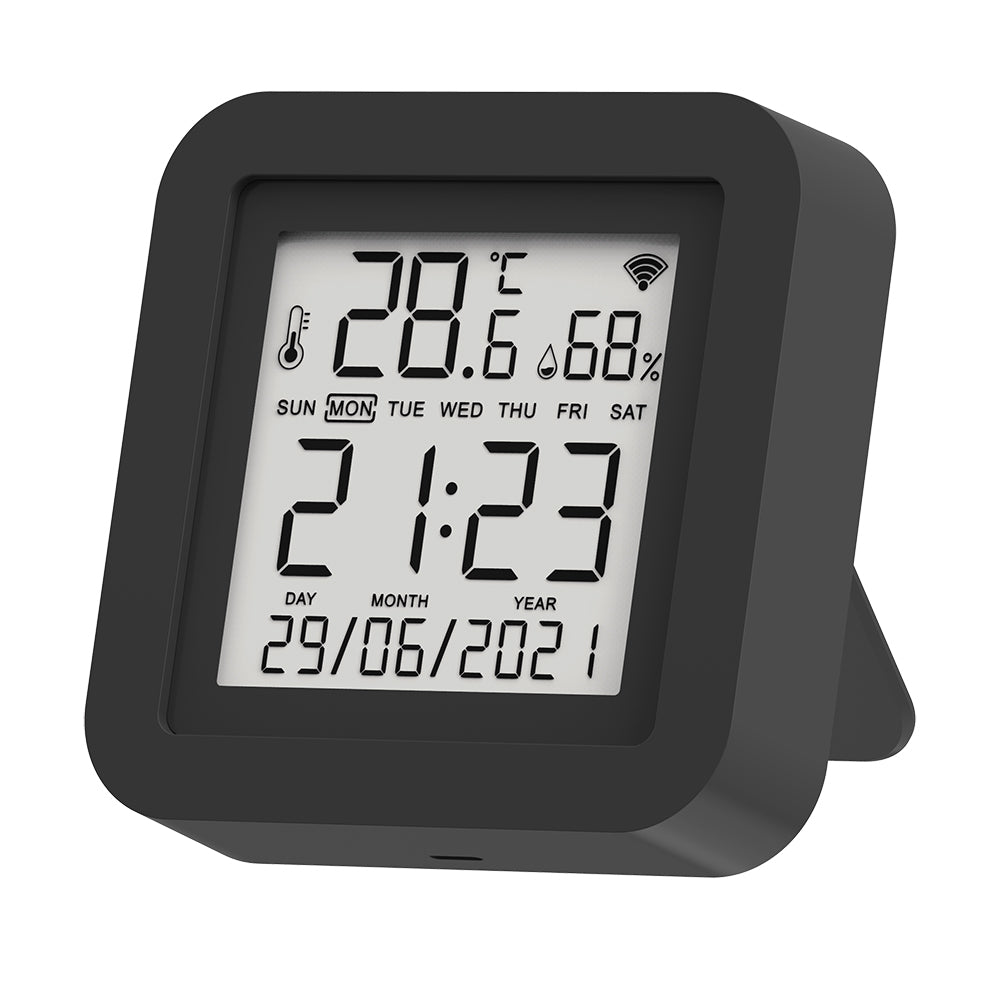

2. Built-in Temperature & Humidity sensor and Built-in display screen
With the help of the built-in sensor, you can know the temperature and humidity in the room at any time. And according to their values, do subsequent automation. For example, turn on the air conditioner when the temperature is higher than 26 ℃, and turn on the humidifier when the humidity is less than 50%
3. App Remote Control
Remote Control your home appliances by using “Smart Life” App in your smart phone anywhere anytime. For example: Switch on home A/C in advance, enjoying the comfortable temperature once you get home.
4. Easy to install and add to app
Once you plug the cable line into the device, the device enters configuration mode, and then Then use Bluetooth configuration in APP. The whole process takes only a few minutes.
5. Voice Control
By connecting Intelligent speaker, such as Amazon Alexa, Google Home, you are able to control your home appliances by voice. For example: Alexa, turn on TV; OK Google, set air conditioning temperature to 25 degrees.
6. Scenario and Automation in App
A scenario consists of 1 or more actions. By creating an “Scenario”, you may control multiple devices with one tap; By adding an “Automation” and interworking with other smart home devices, Wi-Fi remote control is able to execute actions automatically according to conditions, such as device status, weather and time.
7. Timer and Automatic Trigger
According to your living habits, set time switches for your home appliances, such as turning on/off the air conditioner at regular intervals.
8. DIY
Customizing buttons in the Tuya Smart App if your home appliances brand is not in the list or not supported.
9. Third-Party Control
Works with Amazon Alexa, Google Assistant, Tmall Genie, Tecent Xiaowei, DingDong, Rokid, DuerOS, etc.

Why choose this product?

1. Say goodbye to use remote controls for each of the IR home appliances such as TV, Air-Conditioner , TV box, light, Fan, Audio, etc.
2. You can remotely control these devices with the tap of your finger on the mobile App.
3. you can real-time monitor the temperature and humidity on App at anytime and anywhere.
4. Combining with 3 functions , yet its cost is half cheaper than that of purchasing IR Remote and Temperature & Humidity Sensor separately. It goes beyond its real value.
5. When the ambient environment change, you can execute intelligent link. For instance, where the room temperature surpass 30℃, the Air-conditioner will open automatically.

NOTE: Please kindly read the user manual carefully before usage and keep it for future reference.

APP Remote Control

Turn on your air conditioner, no matter where you are.
-Support 99% air conditioner in the market,automatic cloud panel match,one button download App to remote control
-Turn on AC in advance, enjoy the warm time when you get home

IR Remote Replace

The Smart IR Remote expanded IR code library cover above 98% IR device. So TV, Air conditioner, STB Fan and lighting etc. which used IR Control can be control by it.
You don't need to worry about the problems you can't control, and finally we provide the copy function.

Built-in Temperature and Humidity Sensor

With the help of the built-in sensor, you can know the temperature and humidity in the room at any time. And according to their values, do subsequent automation. For example, turn on the air conditioner when the temperature is higher than 26 ℃, and turn on the humidifier when the humidity is less than 50%.

Voice Control

By connecting App to Amazon Alexa, Google Home, you are able to control your home appliances by voice. For example:
-Alexa, turn on the TV;
-OK Google, set air conditioning temperature to 25 degrees.
-Alice, turn on the light.
NOTE:
1. This product is recognized as a universal remote control on Amazon Alexa/Google Home/Yandex Alice, and cannot be recognized as a temperature and humidity sensor.

2. This product will not be displayed on Amazon Alexa and Google Home. Only the appliances remote added to our products are displayed on Alexa/Google Home/Yandex, and you can only control them by voice.

3. Yandex Alice Only Support Air conditioner, TV, TV BOx STB, Fan

Timer and Automatic Trigger

Never miss one second of excellent match
-Stay up late for the match,but always oversleep?
-The smart remote control helps you turn on TV at right time and right channel. Enjoy your match!

Intelligent link

In Smart Life or Tuya Smart system, you can use the temperature and humidity data of Smart IR as the automatic conditions. That is, you can ask other devices to perform specific operations according to temperature or humidity.

Maybe every room needs one

Infrared rays cannot penetrate the wall, so it cannot control household appliances in other rooms.
It is recommended to install a universal remote control in every room.

NOTE: The Smart IR Remote can control multiple infrared remote control home appliances, the APP does not limit the specific number, but they must be in the same room.

Which types are Remote Control support?

The Smart IR Remote supports all infrared remotes.
But note that 2.4G remotes, RF remotes, and Bluetooth remotes are not supported.

Tips:
1. The infrared remote control has an infrared emitting tube, or the infrared emitting tube is protected by a black transparent window.

2. Long press the infrared remote control to start the home appliance, the long press function is not supported, other functions are supported.

Product Parameter:

* Input: DC 5V/1A(Micro USB NO Adapter)
* Infrared Frequency: 38KHz
* IR Remote Control Distance: 10m
* Connection: Wi-Fi 2.4GHz
* Original App: Smart Life
* Temperature Measuer Range: 0?-80?
* Temperature Accuracy: ± 1 ℃
* Humidity Measure Range: 0%RH-99%RH
* Humidty Accuracy: ± 5% RH
* Material: ABS
* Size: 45mm * 47mm
* Screen size: 40mm * 40mm
